FO Main Instrument Panel (MIP) Visual Locator

  • February 23, 2025

FWD OH
AFT OH
MIP CAPT
MIP CENTER
MIP FO
GLARE
MCP
EFIS
CDU
TQ
PEDESTAL

MIP-FO

Click an item in the diagram at right to view its basic ProSim Config properties.

Click the More Info button that appears in this panel to visit the Combined Config reference table where you’ll find more detailed information on the item, if available.

MIP-FO
NOSE GEAR TRANSIT INDICATOR ASA LIGHT TEST SWITCH BELOW G/S P/INHIBIT INDICATOR BRAKE PRESSURE GAUGE F/O AUTOTHROTTLE RESET INDICATOR F/O AUTOPILOT RESET INDICATOR F/O CABIN ALTITUDE INDICATOR F/O CHRONO ET SWITCH F/O CHRONO PLUS SWITCH F/O CHRONO RESET SWITCH F/O CHRONO SET SWITCH F/O CHRONO CHR SWITCH F/O CHRONO MINUS SWITCH F/O CHRONO TIME/DATE SWITCH F/O FMC RESET INDICATOR F/O TAKEOFF CONFIG INDICATOR FLAP INBHIBIT SWITCH FLAP LOAD RELIEF INDICATOR GEAR INHIBIT SWITCH GPWS INOP INDICATOR GPWS SYS TEST INBOARD DU BRIGHTNESS (OUTER KNOB) LANDING GEAR LEVER LEFT GEAR TRANSIT INDICATOR LEFT GEAR DOWN INDICATOR LOWER DU FO SWITCH MAIN PANEL BRIGHTNESS KNOB MAIN PANEL DUS FO SWITCH NOSE GEAR DOWN INDCATOR OUTBOARD DU BRIGHTNESS KNOB RIGHT GEAR TRANSIT INDICATOR RIGHT GEAR DOWN INDICATOR SPEED BRAKES EXTENDED INDICATOR TERRAIN INHIBIT SWITCH INBOARD DU BRIGHTNESS (INNER KNOB)

NOSE GEAR TRANSIT INDICATOR


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear nose transit (Indicator)
  • Gear nose PTT Normal (Switch)
  • Gear nose PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

ASA LIGHT TEST SWITCH

asa_test_fo_off_switch-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • ASA Test F/O Off (Switch)
  • ASA Test F/O 1 (Switch)
  • ASA Test F/O 2 (Switch)
Hardware

  • Momentary switch, spring-loaded to center.
Notes

  • Not Available

BELOW G/S P/INHIBIT INDICATOR

ProSim System

  • MIP
ProSim Config Names (Types)

  • Below GS FO (Indicator)
Hardware

  • Not Available
Notes

  • Not Available

BRAKE PRESSURE GAUGE


ProSim System

  • Hydraulic
ProSim Config Names (Types)

  • Brake pressure (Gauge)
Hardware

  • Not Available
Notes

  • Not Available

F/O AUTOTHROTTLE RESET INDICATOR

asa_at_amber_fo_indicator-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • ASA A/T Amber F/O (Indicator)
  • ASA A/T Red F/O (Indicator)
  • ASA A/T reset Capt Off (Switch)
  • ASA A/T reset Capt Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O AUTOPILOT RESET INDICATOR

asa_ap_amber_fo_indicator-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • ASA A/P Amber F/O (Indicator)
  • ASA A/P Red F/O (Indicator)
  • ASA A/P reset F/O Off (Switch)
  • ASA A/P reset F/O Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CABIN ALTITUDE INDICATOR

cabin_altitude_fo_indicator-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • Cabin altitude indicator FO (Indicator)
  • Cabin altitude indicator FO PTT Normal (Switch)
  • Cabin altitude indicator FO PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO ET SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o ET Normal (Switch)
  • Chrono f/o ET Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO PLUS SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o + Normal (Switch)
  • Chrono f/o + Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO RESET SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o RESET Normal (Switch)
  • Chrono f/o RESET Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO SET SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o SET Normal (Switch)
  • Chrono f/o SET Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO CHR SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o CHR Normal (Switch)
  • Chrono f/o CHR Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO MINUS SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o – Normal (Switch)
  • Chrono f/o – Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O CHRONO TIME/DATE SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Chrono f/o Date/Time Normal (Switch)
  • Chrono f/o Date/Time Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O FMC RESET INDICATOR

asa_fmc_fo_indicator-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • ASA FMC F/O (Indicator)
  • ASA FMC reset F/O Off (Switch)
  • ASA FMC reset F/O Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

F/O TAKEOFF CONFIG INDICATOR

takeoff_config_fo_indicator-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • Takeoff config FO (Indicator)
  • Takeoff config FO PTT Normal (Switch)
  • Takeoff config FO PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

FLAP INBHIBIT SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Flap inhibit Norm (Switch)
  • Flap inhibit inhibit (Switch)
Hardware

  • Not Available
Notes

  • Not Available

FLAP LOAD RELIEF INDICATOR

ProSim System

  • MIP
ProSim Config Names (Types)

  • Flap load relief (Indicator)
  • Flap load relief PTT Normal (Switch)
  • Flap load relief PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

GEAR INHIBIT SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Gear inhibit Norm (Switch)
  • Gear inhibit Inhibit (Switch)
Hardware

  • Not Available
Notes

  • Not Available

GPWS INOP INDICATOR

ProSim System

  • MIP
ProSim Config Names (Types)

  • GPWS lnop (Indicator)
  • GPWS lnop PTT Normal (Switch)
  • GPWS lnop PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

GPWS SYS TEST

ProSim System

  • MIP
ProSim Config Names (Types)

  • GPWS Sys test Off (Switch)
  • GPWS Sys test Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

INBOARD DU BRIGHTNESS (OUTER KNOB)

ProSim System

  • MIP
ProSim Config Names (Types)

  • Right Inboard Brightness (Analog)
Hardware

  • Not Available
Notes

  • Not Available

LANDING GEAR LEVER


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear Off (Switch)
  • Gear Up (Switch)
  • Gear Down (Switch)
Hardware

  • Not Available
Notes

  • Not Available

LEFT GEAR TRANSIT INDICATOR


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear left transit (Indicator)
  • Gear left transit PTT Normal (Switch)
  • Gear left transit PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

LEFT GEAR DOWN INDICATOR


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear left (Indicator)
  • Gear left PTT Normal (Switch)
  • Gear left PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

LOWER DU FO SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Lower DU FO Norm (Switch)
  • Lower DU FO ND (Switch)
  • Lower DU FO Eng Pri (Switch)
Hardware

  • 8-position rotary limited to three positions.

8-Position-Switch-150x150.jpg?img_width=150&img_height=150

Notes

  • Not Available

MAIN PANEL BRIGHTNESS KNOB

ProSim System

  • Lighting
ProSim Config Names (Types)

  • MIP panel fo light (Analog)
Hardware

  • Not Available
Notes

  • Not Available

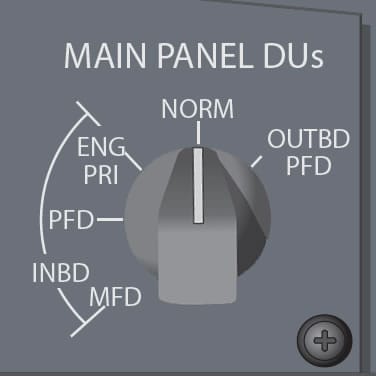

MAIN PANEL DUS FO SWITCH

Main_Panel_DUs_FO_NORM-150x150.jpg?img_width=150&img_height=150

ProSim System

  • MIP
ProSim Config Names (Types)

  • Main Panel DUs FO Norm (Switch)
  • Main Panel DUs FO Outbd PFD (Switch)
  • Main Panel DUs FO Eng Pri (Switch)
  • Main Panel DUs FO PFD (Switch)
  • Main Panel DUs FO MFD (Switch)
Hardware

  • 8-position rotary limited to 5 positions.

8-Position-Switch-150x150.jpg?img_width=150&img_height=150

Notes

  • Not Available

NOSE GEAR DOWN INDCATOR


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear nose (Indicator)
  • Gear nose PTT Normal (Switch)
  • Gear nose PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

OUTBOARD DU BRIGHTNESS KNOB

ProSim System

  • MIP
ProSim Config Names (Types)

  • Right Outboard Brightness (Analog)
Hardware

  • Not Available
Notes

  • Not Available

RIGHT GEAR TRANSIT INDICATOR


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear right transit (Indicator)
  • Gear right transit PTT Normal (Switch)
  • Gear right transit PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

RIGHT GEAR DOWN INDICATOR


ProSim System

  • Landing Gear
ProSim Config Names (Types)

  • Gear right (Indicator)
  • Gear right PTT Normal (Switch)
  • Gear right PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

SPEED BRAKES EXTENDED INDICATOR

ProSim System

  • MIP
ProSim Config Names (Types)

  • Spoiler Extend (Indicator)
  • Spoiler Extend PTT Normal (Switch)
  • Spoiler Extend PTT Pushed (Switch)
Hardware

  • Not Available
Notes

  • Not Available

TERRAIN INHIBIT SWITCH

ProSim System

  • MIP
ProSim Config Names (Types)

  • Terrain inhibit Norm (Switch)
  • Terrain inhibit Inhibit (Switch)
Hardware

  • Not Available
Notes

  • Not Available

INBOARD DU BRIGHTNESS (INNER KNOB)

ProSim System

  • MIP
ProSim Config Names (Types)

  • Right Inboard Brightness Inner (Analog)
Hardware

  • Not Available
Notes

  • Not Available
